Adding a Parameter to a Display

Parameter Browser

1. From the file menu, open an existing workbook or add a new display.
2. Using the Session Browser, select an existing session to load, or configure a recorder to start recording a live session.
3. When the session has loaded, select a display to add parameters to by clicking on it with the mouse.
4. Press P to display the Parameter Browser, or press the Parameter Browser icon in the toolbar. It will now be populated with the parameters available for that session.

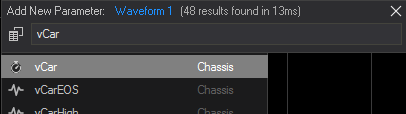

5. To filter your results to specific parameters you can enter your criteria in the text box. E.g. type ‘vcar’
6. Click on the specific parameter that you want to add to the display or drag it from column 2 to column 3.
7. You can highlight multiple parameters and double click or drag, to add them all at once.

Quick Access

1. When you have a display selected press and hold the CTRL key, and press Q once to bring up the Quick Access window. Type a full or partial parameter name to quickly add that parameter to the display.
