.Net Functions

The attached example demonstrates SQL Race C# functions.

The example exposes two C# functions, one with 2 input/1 output parameter(s) and another with 1 input/2 output parameter(s) (any number of input/output can be specified as required).

Use the C# Class Library project template.

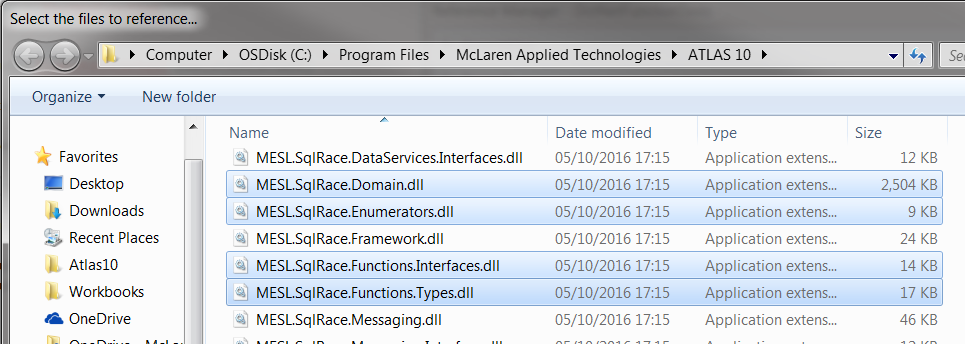

The following modules must be referenced:

• OCS.Core
• SQLRace.Domain
• SQLRace.Enumerators
• SQLRace.Functions.Interfaces
• SQLRace.Functions.Types

Each function is implemented in a class that implements IDotNetFunction and is exported via the following attribute:

               [Export(typeof(IDotNetFunction))]

With the following namespaces:

using MESL.SqlRace.Domain.Functions;

using MESL.SqlRace.Domain.Functions.DotNet;

using MESL.SqlRace.Enumerators;

using MESL.SqlRace.Functions.Interfaces.Enums;

using MAT.OCS.Core;

The function is defined and build in:

            public void Initialize(IFunctionManager functionManager)

The function properties match those you would specify when creating a function from the editor.

Remember to assign “this” to the ImplementationDefinition.

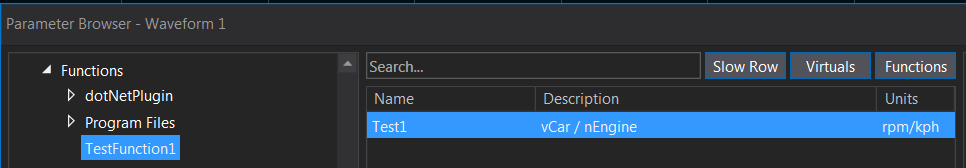

Note: RelativePath can be set to override the location of the function within the parameter browser.

and executed in:

           public void Execute(IExecutionContext executionContext)

 where the timestamp of each input(s) is accessed by:

           executionContext.FunctionInput.Timestamps[]

 and values for each input via:

          executionContext.FunctionInput.Values[][]

(input parameter index, input value)

The indexes of input parameters can be looked up by name:

          executionContext.FunctionInput.InputParameterIndexes

 The combined status of the inputs is accessed by:

         executionContext.FunctionInput.Statuses[]

NB: if the status is DataStatusType.Missing, then assign double.NaN to the corresponding output values to indicate no value.

output values are assigned to each output parameter for each input value, via:

         executionContext.FunctionOutput.OutputParametersValues[][]

                     (output parameter index, output value)

The indexes of output parameters can be looked up by name:

         executionContext.FunctionOutput.OutputParameterIndexes

Copy just the output module to:

C:\Users\<user>\Documents\McLaren Electronic Systems\SQL Race\Functions\ or sub folder.

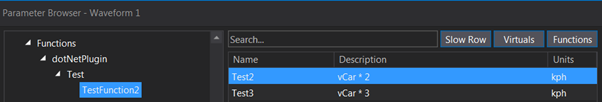

Restart ATLAS10 and on inspecting the parameter browser, you should see:





Additional notes

Calculation mode

functionDefinition.CalculationModeInfoDefinition.Mode = CalculationMode.FixedFrequency;

“FixedFrequency” can be replaced by "EachSamplePoint" or "HighestRate".

It is also possible to use corresponding numbers

functionDefinition.CalculationModeInfoDefinition.Mode = 0;

• 0 = EachSamplePoint
• 1 = FixedFrequency
• 2 = HighestRate

If you use FixedFrequency, the following line is to be used to set it up (Example for 1Hz):

functionDefinition.CalculationModeInfoDefinition.Frequency = 1;
